- Size: 30
- Place of Origin: China
- Brand Name:
- Model Number: HB200A
- Weight: 3.800 kg

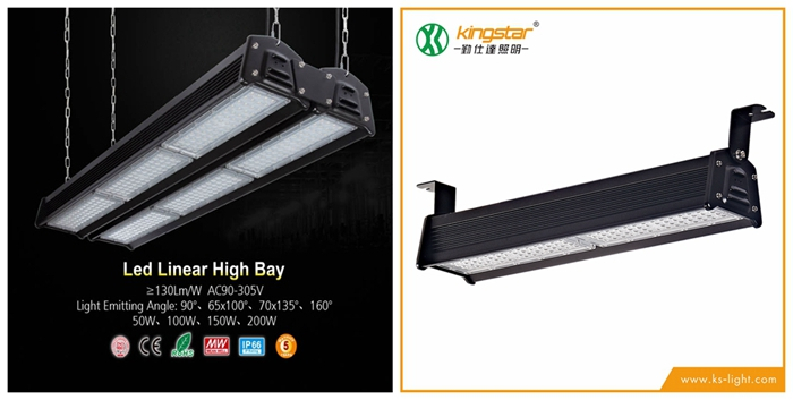

Linear highbay light IP66 130LM/W Dimmable private modul 200W philip led meanwell driver
IP 66 Zeus Linear LED Highbay Light
Energy saving, environmental protection, low-maintenance industrial applications
(1)Emitting color：WW：2800-3200K DW：3750-4250K PW：4750-5250K CW：5700-6500K
LED Type：Philip 3030
(2) LED Q'ty：112PCS
(3) Luminous Efficiency:≥110－130lm/W
Driver brand:Meanwell
(4)(100w)Packing Details:Product size:L624mm*W142.2mm*H112.5mm Carton Size: L885mm*W210mm*H175mm N/W：3.85Kg G/W：5.4Kg
. Using the most advanced LM80 / philips chip light source and UL 3030 certification Meanwell / WNT drive power.
. Innovative optical and efficient thermal design, lighting luminous efficiency more than 110 lm/w.
. Ideal optical light distribution design, this industrial lighting is the best solution to meet various applications.
. Increase controllable version, 1-10V dimming and microwave sensors. This industrial lighting solution can save 80% of energy.

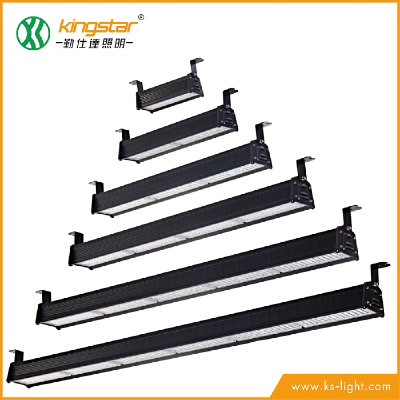

. This industrial lighting can achieve 50W, 100W, 150W, 200W, 250W and 300W, suitable for installation in 6-16m height.
. Variety of installation options for a variety of applications.
- Size: 30
- Place of Origin: China
- Brand Name:
- Model Number: HB200A
- Weight: 3.800 kg
Linear highbay light IP66 130LM/W Dimmable private modul 200W philip led meanwell driver
Best seller industrial linear led linear light fixture 150lm/W
Key Features:
1. Using cold forging technology, heat resistant up to 95 °
2. Philips LED Chips(LM80 TM21 listed),130lm/w
3.Taiwan Meanwell driver and 93% Transmittance tempered glass.
4. Wide VoltageAC100-277V/584V
5. 60W to 900W is available
6. IP65; Reflector with glass bottom used in chemical factory
7. CE RoHS PSE DLC UL SAA TUV approval, 5 year warranty,high quality with reasonable cost
Specification
Power | 60w | 100w | 150w | 200w | 240w | 300w | 400w | 500w | 600w | 750w | 900w |
LEDs | 60pcs | 120pcs | 180pcs | 240pcs | 240pcs | 300pcs | 480pcs | 480pcs | 720pcs | 720pcs | 900pcs |
Lumens | 9000lm | 15000lm | 22500lm | 30000lm | 36000 lm | 45000 lm | 60000 lm | 75000 lm | 90000 lm | 112500 lm | 135000 lm |
voltage | AC100-290V | ||||||||||
LED Brand | Philips | ||||||||||
Driver Type | Meanwell HBG/HLG | ||||||||||
Fixture materials | Cold forging Alluminum | ||||||||||
System Efficiency | >90% | ||||||||||
System Efficacy | >150lm/W | ||||||||||
CCT | 3000K-8000K/5700K | ||||||||||
Color Indux | >78(83 optional) | ||||||||||
IP Rating | IP65 | ||||||||||
Power Factor | >0.95 | ||||||||||
Power Frequency | 47-63Hz | ||||||||||
Operating Temperature | -30 to 70 | ||||||||||
Storage Temperature | -40 to 90 | ||||||||||
Dimmable, Sensor | Optional | ||||||||||
Linear highbay light IP66 130LM/W Dimmable private modul 200W philip led meanwell driver
Characteristics and Innovation： Life up to 50000hrs
• Industry-leading luminous efficiency of 120 lm / w
•5 years warranty
• Protection class IP66
• Controllable or microwave sensor available
•Controllable and Dali available
•Various installation
• Save 80% energy
•No ultraviolet and infrared, no mercury
• Instant On / Off
•Free maintenance
•Heat generated less than traditional lamps
